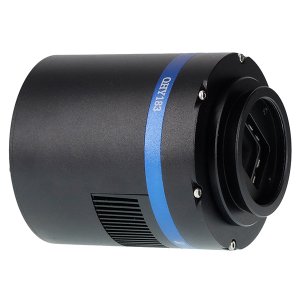

QHY183M - Monochrome CMOS Astronomy Camera
20 MP, Back-Illuminated, 128MB DDR Memory, Two Stage Cooling
- The QHY183M includes the 20 megapixel Sony IMX183 monochrome CMOS Exmor R sensor.
- The Exmor R is a back-illuminated sensor that retains the advantages of CMOS high-speed operation but uses back-illumination technology for super low readout noise /*C*and*C*/ high quantum efficiency.
- The QHY193M offers a QE of 84% /*C*and*C*/ readout noise as low as 1 electron!
- The 1' sensor has an image array of 5544 x 3694 active pixels that are 2.4um in size for high resolution results even with smaller telescopes.
- A two-stage TEC regulated cooling system cools the sensor to -40C to -45C below ambient temperature.
- Other features include a 128MB DDR Memory /*C*Buffer*C*/ for stable /*C*and*C*/ reliable data transfer, a heated optical window /*C*and*C*/ desiccant plug socket to help control dew /*C*and*C*/ moisture, /*C*and*C*/ the use of Anti-Amp Glow technology to keep CMOS amplifier glow to a minimum.
QHY183M Camera Specifications
- CMOS Sensor: Sony IMX183 Back Illuminated Sensor
- Color /*C*or*C*/ Monochrome: Monochrome
- Effective Pixels: 5544 x 3694
- Pixel Size: 2.4um x 2.4um
- Effective Area: 13.3mm x 8.9mm
- Shutter: Electric Rolling Shutter
- Full Well Capacity: 15,000 - 16000e
- Readout Noise: 1e@high gain, 2.7e@low gain
- Dark Current: 0.0024e-/p/s@-15C
- Frame Rate:
- 15 FPS @ 20 MP (full resolution)
- 25 FPS @ 4K HD Video
- 25 FPS @ 12 MP
- ROI Support: Yes. Any Area ROI
- Exposure Time: 50us-3600sec
- AD Sample Depth: 10bit/12bit (8bit/16bit output, MSB Alignment)
- On Camera Image Buffer: Yes, 128MB DDRII Buffer
- Cooling: 2-stage TEC, Typical -40 below Ambient, Temperature Regulated
- Power: USB Powered for camera /*C*and*C*/ +12V powered for TEC
- Anti Dew Control: Air Connector for removable silicon gel tube. Heat board for optic window of sealed CCD chamber
- Computer Interface: USB3.0 Super Speed
- Telescope Interface: M42/0.75 & 2inch adapter. Optional C-mount adapter
- Color Wheel Port: 4PIN QHYCFW2 socket
- Guide Port: 6PIN RJ11 Guide Port
- Optic Window: AR+AR
- Weight: 450g/15.87 ounces
- Electric Interface: 12V /*C*input*C*/ with lock, USB3.0 socket, 4PIN QHYCFW, 6PIN RJ11
| QHY183 COLDMOS CAMERA SPECIFICATION | |
| Model | QHY183M(Monochrom) QHY183C(Color) |
| CMOS Sensor | SONY IMX183 BSI CMOS |
| AR Coating On Sensor | Yes |
| Pixel Size | 2.4um*2.4um |
| Effective Pixel Area | 5544*3694 |
| Effective Pixels | 20 mega |
| Effective Image Area | 13.3mm*8.87mm |
| Fullwell | 15.5ke- |
| Peak QE | 84% (Monochrome) |
| AD Sample Depth | 12bit (output as 16bit /*C*and*C*/ 8bit) |
| Sensor Size | Typical 1 inch |
| Max Full Frame Rate /*C*and*C*/ ROI Frame Rate | 5544*3864 Full Resolution 19FPS@8BIT 7.5FPS@12BIT 4096*2160 4K HD Video 31FPS@8BIT 12FPS@12BIT* 1920*1080 HD Video 60FPS@8BIT 24FPS@12BIT* 800*600 SVGA 106FPS@8BIT 42FPS@12BIT* 640*480 VGA 130FPS@8BIT 53FPS@12BIT* And more resolutions (Support any region ROI) *Note: The 16bit ROI for above 7.5FPS requires the QHYCCD SDK (qhyccd.dll) version 2019.2.27 /*C*or*C*/ later. The old SDK only support 7.5FPS fixed frame rate. You can go to https://www.qhyccd.com/index.php?m=content&c=index&a=show&catid=127&id=162 to obtain the lastest SDK. |
| Readout Noise | 2.7e-@lowest gain 1.0e@high gain |
| Dark Current | 0.0024e/pixel/sec @ -15C |
| Exposure Time Range | 50us-3600sec |
| Anti-Glow Control | Yes |
| Shutter Type | Electric Rolling Shutter |
| Computer Interface | USB3.0 |
| Built-in Image Buffer | 128MByte DDR2 memory |
| Non-volatile memory / On camera storage | Build-in total 512Kbytes Flash Memory. 100Kbytes user-accessible space for stellar ROI frames for analysis of exoplanet investigation, occultations, atmospheric seeing messurement, focus , optic analysis etc. Support 100*100 image x 10rames 50*50 image x40frames. 25*25 image x160frames 10*10 image * 1000 frames （total frame numbers is based on 8bit image） |
| Cooling System | Dual Stage TEC cooler (-40C below ambient） |
| Anti-Dew Heater | Yes |
| Telescope Interface | M42/0.75 |
| Optic Window Type | QHY183M: AR+AR High Quality Multi-Layer Anti-Reflection Coating |
| Back Focal Length | see the setup combination /*C*table*C*/ in the bottom of this page |
| Weigth | 650g |
