이 제품에는 적도의 케이스, 삼각대가 포함되어 있지 않습니다.

극축망원경은 광학식 극축망원경이 포함되어 있습니다.

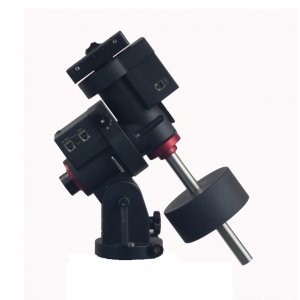

Introducing iOptron’s new compact next-generation German equatorial mounts the GEM28!

Like their predecessors, the GEM28 is designed with portability in mind, weighing in at only 10 lbs it can support payloads up to 28 lbs -- an incredible 2.8 payload-to-self weight ratio. We achieved this using design methods developed to reduce mount mass in our GEM family of mounts. These German EQ versions were created to satisfy consumer that prefer a more traditional mount /*C*and*C*/ to function at higher latitudes.

Building on the legacy of earlier GEM models we have added features for convenience /*C*and*C*/ functionality: a positive lock gear engagement system that's easy to use even when wearing gloves the built-in Wi-Fi enables unparallel connectivity, /*C*and*C*/ recordable permanent periodic /*C*error*C*/ correction (PPEC) to repeat optimal PEC training sessions. Regarding functionality the GEM28 delivers precise pointing /*C*and*C*/ accurate tracking. The GEM28 sets the new standard for compact German equatorial goto mounts.

The GEM28 is equipped with the latest advanced GOTONOVA? GOTO technology, making it one of the most powerful /*C*and*C*/ accurate GOTO mounts available. The 212,000+ object library ensures you’ll never /*C*run*C*/ out of targets to see /*C*or*C*/ image. The Go2Nova? Hand Controller is intuitive to use /*C*and*C*/ its large 4-line LCD screen simplifies the /*C*process*C*/ of setting telescopes /*C*and*C*/ locating objects.

The GEM28 ECON does /*C*NOT*C*/ come with a supporting tripod /*C*or*C*/ pier; it has an AccuAlignTM optical polar scope installed for quick /*C*and*C*/ easy polar alignment.

Features

German equatorial design, latitude range of 10° ~ 70°
Ideal for both visual observation /*C*and*C*/ astrophotography
Low periodic /*C*error*C*/ (< ± 12 arc seconds)
Payload of 12.7 kg (28 lbs) with the mount-only weight of 4.5 kg (10 lbs)
CNC machined /*C*and*C*/ cast metal body
Spring loaded gear system
Large easy to use quick-lock gear clutches
Stepper motor with low power consumption
AccuAlign^TM calibrated polar scope
Polar alignment routine for those who can’t see the Pole Star
Go2Nova? 8409 controller with Advanced GOTONOVA? GOTO Technology
Integrated ST-4 autoguiding port
Built-in Wi-Fi
USB port for firmware upgrade /*C*and*C*/ computer control
Die-cast metal tripod spreader with accessory tray
Optional hard carrying case
Optional 32-channel Global Positioning System (GPS)
Optional iGuider^TM autoguiding system (#3360)

Mount	German Equatorial Mount
Payload *	28 lbs (12.7kg), exclude counterweight
Mount weight	10 lbs (4.5kg)
Payload/Mount weight	2.80
Structure Material	All metal, Casting + CNC machined
Exterior Finish	Powder coating
Periodic /CerrorC/ (PE) **	<±12 arcsec
PEC	Yes, Permanent PEC
Worm period	600 sec
Right Ascension worm wheel	Φ88mm, 144 teeth aluminum
Declination worm wheel	Φ88mm, 144 teeth aluminum
Right Ascension axis shaft	Φ35mm steel
Declination axis shaft	Φ35mm steel
Right Ascension bearing	Φ55mm ball bearing
Declination bearing	Φ55mm ball bearing
Worm gears	Φ15.2mm, Brass
Motor drive	1.8º stepper motor, 128X microdivision
Resolution	0.17 arc seconds
Transmission	Synchronous belt
Latitude adjustment range	10º ~ 70º
Azimuth adjustment range	± 6º
Polar Scope	AccuAlign^TM optical polar scope
Level indicator	Level bubble
Hand Controller	Go2Nova? 8409 with ~212,000 objects database
Tracking	Automatic
Slew speed	1×,2×,8×,16×,64×,128×,256×,512×,MAX(6º/sec)
Power consumption	0.6A(Tracking), 0.9A(GOTO)
Power requirement	12V DC, 5A
AC adapter	100V ~ 240V (included, for indoor use only)
Power-down memory	Yes
Wi-Fi	Built-in
Communication port	Yes (Wi-Fi /CandC/ USB)
Autoguide port	Yes (ST-4 compatible)
Firmware upgrade	Yes
PC computer control	Yes (ASCOM)
Counterweight shaft	Φ20X200mm (M16), Stainless Steel
Shaft extension	Φ20X120mm (M16), Stainless Steel
Counterweight	10 lbs (4.5kg)
Dovetail saddle	3.8' Vixen-style, center adjustable
Carrying case	Optional
GPS	Optional external 32-channel GPS
Autoguiding	Optional external iGuider 1
Operation temperature	-10ºC ~ 40ºC
Warranty	Two year limited
