상품코드 : 0129_00118
GEM28 w/AccuAlign/LiteRoc[즉시공급]
판매가 1,990,000원
구매혜택 적립금 1%
배송방식 일반배송
배송비 주문금액별 차등 (무료)
  • 구입하실 상품을 추가해주세요.
    총 상품 금액 : 상품 가격을 선택해주세요.
    바로구매 장바구니 관심상품
    TOP

    가대 알루미늄 케이스가 포함되어 있지 않으며 광학식 극축망원경이 장착된 모델입니다.

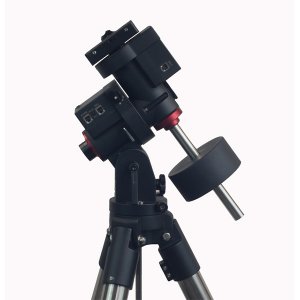

    Introducing iOptron’s new compact next-generation German equatorial mounts the GEM28!

    Like their predecessors, the GEM28 is designed with portability in mind, weighing in at only 10 lbs it can support up to a 28lb payload an incredible 2.8 mount weight to payload ratio. We achieved this using design methods developed to reduce mount mass in our CEM family of mounts. The German EQ versions were created to satisfy consumer that prefer a more traditional mount /*C*and*C*/ to function at higher latitudes.

    Building on the legacy of earlier GEM models we have added features for convenience /*C*and*C*/ functionality. A positive lock gear engagement system (easy to use even when wearing gloves), Built-in Wi-Fi enabling unparallel connectivity /*C*and*C*/ recordable permanent periodic /*C*error*C*/ correction (PPEC) to repeat optimal PEC training sessions. Regarding functionality the GEM28 delivers precise pointing /*C*and*C*/ accurate tracking. The GEM28 sets the new standard for compact German equatorial goto mounts.

    The GEM28 is equipped with the latest advanced GOTONOVA? GOTO technology, making it one of the most powerful /*C*and*C*/ accurate GOTO mounts available. The 212,000 object library ensures you’ll never /*C*run*C*/ out of targets to see /*C*or*C*/ image. The Go2Nova? Hand Controller is intuitive to use /*C*and*C*/ its large 4-line LCD screen simplifies the /*C*process*C*/ of setting telescopes /*C*and*C*/ locating objects.
    The CEM26B mount has an AccuAlignTM optical polar scope installed for quick /*C*and*C*/ easy polar alignment. It comes with a LiteRoc heavy duty stainless steel tripod.

    Shipping Box #1: G281B-GEM28 Head w/ AccuAlign/Tray (G281B)
    Shipping Box #2: 8283-CEM26/GEM28 LiteRoc Tripod w/o Tray (C26/G28 LiteRoc)





    Features
    • German equatorial design, latitude range of 10° ~ 70°
    • Ideal for both visual observation /*C*and*C*/ astrophotography
    • Low periodic /*C*error*C*/ (< ± 12 arc seconds)
    • Payload of 12.7 kg (28 lbs) with the mount-only weight of 4.5 kg (10 lbs)
    • CNC machined /*C*and*C*/ cast metal body
    • Spring loaded gear system
    • Large easy to use quick-lock gear clutches
    • Stepper motor with low power consumption
    • AccuAlignTM calibrated polar scope
    • Polar alignment routine for those who can’t see the Pole Star
    • Go2Nova? 8409 controller with Advanced GOTONOVA? GOTO Technology
    • Integrated ST-4 autoguiding port
    • Built-in Wi-Fi
    • USB port for firmware upgrade /*C*and*C*/ computer control
    • LiteRoc heavy-duty stainless steel tripod (7.5kg)
    • Die-cast metal tripod spreader with accessory tray
    • Optional hard carrying case
    • Optional 32-channel Global Positioning System (GPS)
    • Optional iGuiderTM autoguiding system (#3360)



    MountGerman Equatorial Mount
    Payload *28 lbs (12.7kg), exclude counterweight
    Mount weight10 lbs (4.5kg)
    Payload/Mount weight2.80
    Structure MaterialAll metal, Casting + CNC machined
    Exterior FinishPowder coating
    Periodic /*C*error*C*/ (PE) **<±12 arcsec
    PECYes, Permanent PEC
    Worm period600 sec
    Right Ascension worm wheelΦ88mm, 144 teeth aluminum
    Declination worm wheelΦ88mm, 144 teeth aluminum
    Right Ascension axis shaftΦ35mm steel
    Declination axis shaftΦ35mm steel
    Right Ascension bearingΦ55mm ball bearing
    Declination bearingΦ55mm ball bearing
    Worm gearsΦ15.2mm, Brass
    Motor drive1.8º stepper motor, 128X microdivision
    Resolution0.17 arc seconds
    TransmissionSynchronous belt
    Latitude adjustment range10º ~ 70º
    Azimuth adjustment range± 6º
    Polar ScopeAccuAlign TM optical polar scope
    Level indicatorLevel bubble
    Hand ControllerGo2Nova? 8409 with ~212,000 objects database
    TrackingAutomatic
    Slew speed1×,2×,8×,16×,64×,128×,256×,512×,MAX(6º/sec)
    Power consumption0.6A(Tracking), 0.9A(GOTO)
    Power requirement12V DC, 5A
    AC adapter100V ~ 240V (included, for indoor use only)
    Power-down memoryYes
    Wi-FiBuilt-in
    Communication portYes (Wi-Fi /*C*and*C*/ USB)
    Autoguide portYes (ST-4 compatible)
    Firmware upgradeYes
    PC computer controlYes (ASCOM)
    Counterweight shaftΦ20X200mm (M16), Stainless Steel
    Shaft extensionΦ20X120mm (M16), Stainless Steel
    Counterweight10 lbs (4.5kg)
    TripodLiteRoc heavy-duty stainless steel tripod (7.5kg)
    Dovetail saddle3.8' Vixen-style, center adjustable
    Carrying caseOptional
    GPSOptional external 32-channel GPS
    AutoguidingOptional external iGuider 1
    Operation temperature-10ºC ~ 40ºC
    WarrantyTwo year limited
