HAE43C Dual AZ/EQ SWG Mount[예약판매]

상세보기
상품코드 : 0129_00129

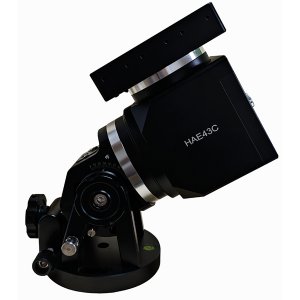

HAE43C Dual AZ/EQ SWG Mount[예약판매]
판매가	4,000,000원

구매혜택	적립금 1%

배송방식	일반배송

배송비	주문금액별 차등 (무료)

추가옵션

구입하실 상품을 추가해주세요.

총 상품 금액 : 상품 가격을 선택해주세요.

상세정보
관련상품
사용후기(0)
상품문의(0)
배송/반품/교환

TOP

이 제품은 주문받은후 iOptron사에 주문이 들어가며 통상적으로 납기까지는 2-3주 소요되나 상황에 따라 늦어질수 있으며 그때에는 유선상으로 알려드립니다.

적도의 케이스가 포함되어 있습니다

핸드콘트롤러와 극축망원경(ipolar)은 별매입니다.

HAE43C모델은 핸드콘트롤러 없이도 PC나 Asiair에 연결가능합니다.

The newest members of iOptron strain wave gear mount family - AZ/EQ dual mount HAE43C /*C*and*C*/ HAE43C EC! These light weight, compact, medium payload titans will deliver an astronomy experience /*C*like*C*/ never before. Imagine a mount head weighing in at less than 13lbs with a payload capability 44lbs, without needing a cumbersome counterweight /*C*or*C*/ shaft. Applying iOptron’s multi-decade experience creating precision mounts, the HAE43 brings this vision to reality.

Utilizing state-of-the-art strain wave gear technology for both RA /*C*and*C*/ DEC movement, the HAE43s deliver unparalleled weight to payload efficiency. Its black anodized, all metal CNC machined body is appealing to the eye /*C*and*C*/ is a rugged platform that will perform at the highest level for many years to come. Unique features include an electronic friction /*C*break*C*/ to safely stop movement during a planned /*C*or*C*/ unplanned power interruption.

All HAE 'C' model dual SWG Alt-az/Eq mounts now have an internal main board /*C*and*C*/ no longer requires a handset for operation. An HAE43c mount can be controlled by a computer via the USB-C port on the mount base, either via ASCOM/Commander for a Windows PC /*C*or*C*/ a third party INDI driver for a Mac OS software. I can aslo be operated with full GoTo function from the optional 8411 handset.

The HAE43C EC features a high precision RA axis encoder that delivers incredible tracking accuracy, enough that many will choose to image “sans” guiding.

(Actual contents may differ from the image. 8411 handset /*C*and*C*/ 3339 iPolar are optional.)

Features

Advanced strain wave gear system technology
Payload capacity of 20 kg (44 lbs) with the mount weight of 5.8 kg (12.8 lbs, include dovetail saddle)
CNC machined
Unique friction brake on both RA /*C*and*C*/ DEC to safely stop movement during a planned /*C*or*C*/ unplanned power interruption
270 second gear period
Programable PEC
Optional 8411 OLED Go2Nova? handset with ~212,000 object database
Optional iPolar electronic polar scope for easy /*C*and*C*/ accurate polar alignment
Dual saddle (Vixen /*C*and*C*/ Losmandy-D styles)
Built in zero position search /*C*and*C*/ locator
Integrated ST-4 autoguiding port
USB port for firmware upgrade /*C*and*C*/ computer control
Aluminum carrying case
Two year warranty

Mount	Strain Wave Altazimuth/Equatorial Mount
RA gear system	Strain Wave Gear
DEC gear system	Strain Wave Gear
Reduction ratio	RA 640:1, DEC 480:1
Payload w/o CW *	44 lbs (20 kg)
Mount weight	12.8lbs (5.8kg) with dovetail saddle
Payload/Mount weight	3.45
Payload with CW*	55 lbs (25kg)
Period	270 second
Drive motor	Stepper motor
Structure Material	All metal, CNC machined
Exterior finish	Anodized black
High precision encoder	No
Polar Scope	Optional iPolar electronic polar scope (external)
Level indicator	Level bubble
Control system	GOTONOVA/Commander
Handset	Optional 8411 OLED Go2Nova?
Tracking	Automatic
Maximum slew speed	6º/sec
Power consumption	0.7A(Tracking), 1.2A(GOTO)
Power	DC12V-5A (5.5/2.5mm DC plug)
AC adapter	100V ~ 240V (included, indoor use only)
Power off brake	Electronic friction brake
Communication port	USB-C
Autoguide port	Yes (ST-4 compatible)
Firmware upgrade	Yes
Dovetail saddle	Vixen & Losmandy
Tripod	Optional
Counterweight Shaft	SS Φ20X200mm, 3/8'-16 thread (Optional)
Counterweight	10 lbs (4.5kg)(Optional)
Operation temperature	-20ºC ~ 40ºC (hand controller -10ºC ~ 40ºC)
Warranty	Two year limited
