상품코드 : 0135_00008

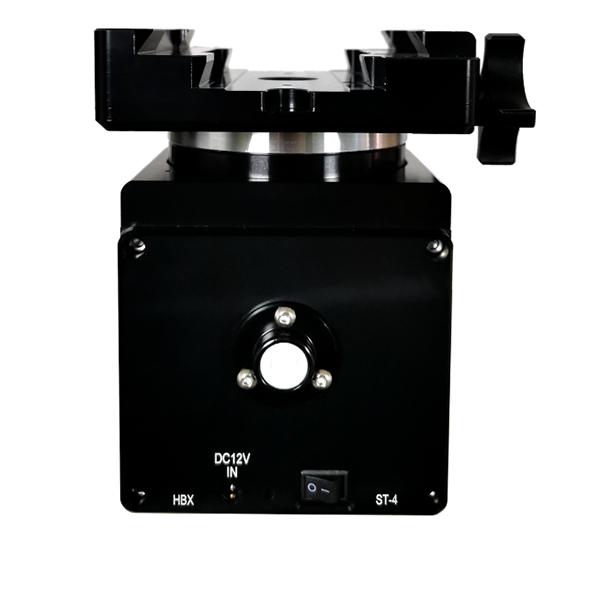

HAE29 Dual AZ/EQ SWG Mount w/iPolar
판매가 2,790,000원
구매혜택 적립금 1%
배송방식 일반배송
배송비 주문금액별 차등 (무료)
관심상품

사진의 삼각대는 별매이며 경통홀더가 듀얼홀더로 변경되었습니다.


이 제품은 주문받은후 iOptron사에 주문이 들어가며 통상적으로 납기까지는 2-3주 소요되나 상황에 따라 늦어질수 있으며 그때에는 유선상으로 알려드립니다.


영문메뉴얼다운로드

https://www.ioptron.com/v/Manuals/HAE_Manual.pdf




Introducing the new members of iOptron strain wave gear mount family - AZ/EQ dual mount HAE29 /*C*and*C*/ HAE29EC! These light weight, high payload little titans will deliver an astronomy experience /*C*like*C*/ never before. Imagine a mount head weighing in at 8 lbs with a payload capability 29.7lbs, without needing a cumbersome counterweight /*C*or*C*/ shaft. Applying iOptron’s multi-decade experience creating precision mounts, the HAE29 brings this vision to reality.

Utilizing state of the art strain wave gear technology for the both RA /*C*and*C*/ DEC movement, the HAE29s deliver unparalleled weight to payload efficiency. Its black anodized all metal CNC machined body is /*C*not*C*/ only appealing to the eye, it’s a rugged platform that will perform at the highest level for many years to come. Unique features such as an electronic friction /*C*break*C*/ /*C*and*C*/ power down memory allow the mount safely stop /*C*and*C*/ resume a GoTo slew /*C*or*C*/ continue tracking even after an abrupt power loss (No need to realign /*C*and*C*/ start from the beginning).

A HAE29 mount can be controlled by a computer, either via ASCOM/Commander for a Windows PC /*C*or*C*/ a third party INDI driver for a MacOS software; a SmartPhone/Tablet via iOptron Commander Lite /*C*or*C*/ an App /*C*like*C*/ SkySafari; /*C*or*C*/ a Raspberry Pi device via INDI driver.

The HAE29EC features a high precision RA axis encoder that delivers incredible tracking accuracy, enough that many will choose to image “sans” guiding.

(Actual contents may differ from the image)





Features
  • Advanced strain wave gear system technology
  • Payload capacity of 13.5 kg (29.7 lbs) with the mount weight of 3.7 kg (8.15 lbs, include dovetail saddle)
  • CNC machined
  • Unique friction brake to safely stop movement during a planned /*C*or*C*/ unplanned power interruption
  • 360 second gear period
  • Go2Nova? hand controller with ~212,000 object database
  • iPolar electronic polar scope for easy /*C*and*C*/ accurate polar alignment
  • Customer cable management system ready
  • Dual saddle (Vixen /*C*and*C*/ Losmandy-D styles)
  • Built in zero position search /*C*and*C*/ locator
  • Power down position /*C*and*C*/ location memory
  • Integrated ST-4 autoguiding port
  • Built-in Wi-Fi (via hand controller)
  • USB port for firmware upgrade /*C*and*C*/ computer control
  • Carrying case
  • Two year warranty





MountStrain Wave Altazimuth/Equatorial Mount
RA gear systemStrain Wave Gear
DEC gear systemStrain Wave Gear
Reduction ratioRA 480:1, DEC 360:1
Payload w/o CW *29.7 lbs (13.5 kg)
Mount weight8.15 lbs (3.7 kg) with dovetail saddle
Payload/Mount weight3.65
Payload with CW*40 lbs (18kg)
Period360 second
Drive motorStepper motor
Structure MaterialAll metal, CNC machined
Exterior finishAnodized black
Polar ScopeiPolar electronic polar scope (external)
Level indicatorLevel bubble
Control systemGOTONOVA/Commander
Hand ControllerGo2Nova? 8409 with ~212,000 objects database
TrackingAutomatic
Maximum slew speed6º/sec
Power consumption0.6A(Tracking), 1A(GOTO)
PowerDC12V-5A (5.5/2.5mm DC plug)
AC adapter100V ~ 240V (included, indoor use only)
Cable managementReady for DIY
Power off brakeElectronic friction brake
Power-down memoryYes
Wi-FiBuilt-in
Communication portYes (Wi-Fi /*C*and*C*/ USB, via HC)
Autoguide portYes (ST-4 compatible)
Firmware upgradeYes
Dovetail saddleVixen & Losmandy
TripodOptional
Counterweight ShaftSS Φ20X200mm, 3/8'-16 thread (Optional)
Counterweight10 lbs (4.5kg)(Optional)
Operation temperature-20ºC ~ 40ºC (hand controller -10ºC ~ 40ºC)
WarrantyTwo year limited

* 200mm, with payload center of gravity to the RA rotation axis. /*C*Or*C*/ an OTA size of ~220mm.
