[7603A-HC]GEM45 with Hard Case[예약판매]

상세보기
상품코드 : 0129_00068
[7603A-HC]GEM45 with Hard Case[예약판매]
판매가	3,300,000원

구매혜택	적립금 1%

배송방식	일반배송

배송비	주문금액별 차등 (무료)

상세정보
관련상품
사용후기(0)
상품문의(0)
배송/반품/교환

TOP

경통 홀더 부분이 이미지와 다르게 변경되었습니다~

Description

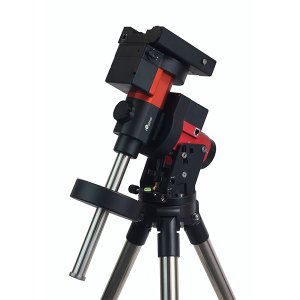

Innovative ideas applied to a time tested design, the iOptron? GEM45 next generation German equatorial mounts. A sharp looking CNC body is the first indicator the GEM45 is a top quality mount in both form /*C*and*C*/ function.

Utilizing experiences gained during development of our CEM series, we were able to remove unnecessary bulk giving the GEM45 an incredible 2.8 payload to mount weight ratio. This compact 15.8lb mount can precisely GOTO an object /*C*and*C*/ track with up to 45lbs of gear onboard. With its integrated electronic polar scope (iPolar^TM), polar alignment is a snap, even when the pole star is obscured. Large levers on the quick-lock drive engagement system make it easy to snap its drive gears into place even when wearing gloves. There is little chance of your cables getting snagged with the GEM45's internal advanced cable management system. A new, patent pending Universal Self-Centering Saddle (USCS) accommodates Losmandy /*C*and*C*/ Vixen style dovetail plates. GEM45 mounts utilize reliable stepper motor drive systems with our low power consumption technology. Our new LiteRoc 1.75' tripod delivers rock solid stability in a lighter, more compact package. A 212,000+ object library with star identification, GPS, Wi-Fi (requires optional iStarFi adapter) are a few of the desirable features standard on a GEM45 mount.

Features

German equatorial mount with innovative features
Idea for both visual observation /*C*and*C*/ astrophotography
Maximum payload of 45 lbs (20 kg) with the mount weight of only 15.8 lbs (7.2 kg)
Easy to use quick-lock gear clutches
Integrated iPolar^TM electronic polar finder
Low periodic /*C*error*C*/ (< ± 7 arc seconds)
Permanent periodic /*C*error*C*/ correction (PPEC)
Precision stepper motor for precise GOTO /*C*and*C*/ accurate tracking
Go2Nova? 8407+ controller with Advanced GOTONOVA? GOTO Technology /*C*and*C*/ built-in heater
Integrated ST-4 autoguiding port
32-channel Global Positioning System (GPS)
USB communication port
Cable management system
New, patent-pending iOptron universal saddle
All metal, CNC machined with red/black anodized
Optional WiFi for mount control via SmartPhone/Tablet/Computer
All new LiteRoc 1.75' tripod with improved stability /*C*and*C*/ leg locks

Shipping Contents

iOptron? GEM45 mount (#7620A, with black gear switches)
Go2Nova? 8407 Hand Controller
One 11lbs (5 kg) counterweight
Stainless steel counterweight shaft
Internal iPolar electronic polar scope
GEM45 GPS module
AC adapter (100V-240V)
2X coiled control Cable (6P6C RJ11 to RJ11, straight wired)
Serial cable (RS232 to RJ9)
USB cable
LiteRoc 1.75' tripod with improved stability /*C*and*C*/ leg locks
Hard case
Quick Start Guide

Technical Specs

Mount	German Equatorial Mount
Max payload*	45 lbs (20 kg), exclude counterweight
Mount weight	15.8 lb (7.2 kg)
Payload/Mount weight	2.78
Structure Material	All metal, CNC machined
Exterior Finish	Anodized red/black
Latitude adjustment range	14º ~ 68º
Azimuth adjustment range	± 6º
Tracking accuracy (PE)**	<±7 arcsec
PEC	PPEC
Period	400 sec
Worm diameter	Φ17mm, Brass
Right Ascension worm wheel	Φ110mm, 216 teeth, zero backlash
Declination worm wheel	Φ110mm, 216 teeth, zero backlash
Right Ascension axis shaft	Φ45mm steel
Declination axis shaft	Φ45mm steel
Right Ascension bearings	Φ68mm
Declination bearings	Φ68mm
Counterweight shaft	Φ28X280 mm, Stainless Steel (1.2 kg)
Counterweight	11lbs (5kg) X1
Motor	Precision stepper motor, 1.8º/128X micro-step
Motor resolution	0.08 arcsec (200 PPS)
Transmission	Synchronous belt
Hand Controller	Go2Nova? 8407+, 8 line 21 /CcharacterC/ LCD
Star Database	212,000+, star identification
Power	DC 12V, 5A
AC adapter	100V ~ 240V (included)
Power consumption	0.6A(Tracking), 0.9A(GOTO)
Power-down memory	Yes
Polar scope	Internal iPolar ^TM electronic polar scope
Meridian treatment	Stop (0-20° pass), flip
Zero position	Automatic zero search
Dovetail saddle	iOptron Universal Saddle, 5'
Max slew speed	4.5°/sec (1080X)
Guiding port	ST-4
Communication port	USB
GPS	Yes
WiFi	External (optional)
Cable Management	DC12V (3A), ST4,USB
Tripod	1.75' Stainless Steel(~8kg), /CorC/ optional Tri-pier
Hard case	Included
Operation temperature	-10ºC ~ 40ºC
Warranty	Two year limited
