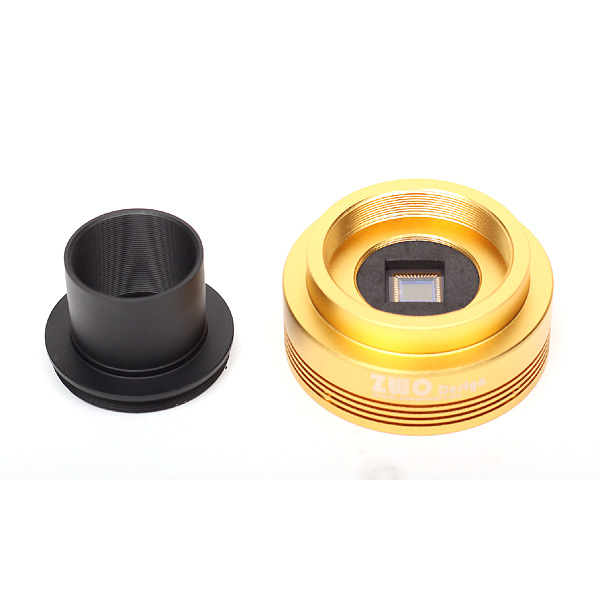

Item included:

ASI130MM

M42-1.25" adapter

2.0 USB line

ASI130MM

ASI130MM is one of the fastest USB2.0 camera in world.
This camera is designed for everyone. With user-friendly interface
new users can learn how to install /*C*and*C*/ use it in short time.
With ultra high frame rate /*C*and*C*/ high sensitivity
it can be used for very wide range of applications.
Suggested applications: Solar, lunar, planetary imaging /*C*and*C*/ auto-guiding

ASI130MM Low Light High Resolution Astro Camera
MICRON MT9M001 low light CMOS sensor has been used.
Optimized for planetary, solar /*C*and*C*/ lunar imaging
Pushing data tranfer rate to the limit of USB2.0 !

Design Concept:
High sensitivity (Peak QE 55%)
Freely control gain /*C*and*C*/ exposure
High resolution, bin mode supported
Ultra high frame rate, truly reach trafer speed limit of USB2.0
Suitable for both imaging /*C*and*C*/ auto-guiding
Great performance, high quality /*C*and*C*/ low cost

Specification:

Sensor: 1/2" Mono CMOS MT9M001
Max. Resolution: 1.3Mega Pixels 1280X1024
Pixel Size: 5.2µm
Exposure Rage: 32µs-1000s

ROI: Supported
Interface: USB2.0
Bit rate: 8bit output（10bit ADC）
Adaptor: 2" / 1.25" / M42X0.75

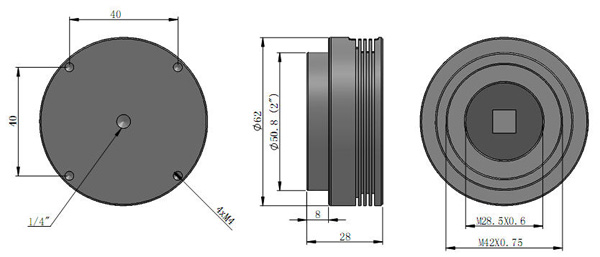

Dimension: φ62mm X 28mm
Weight: 100g

Working Temperature: -5°C—45°C
Storage Temperature: -20°C—60°C
Working Relative Humidity: 20%—80%
Storage Relative Humidity: 20%—95%

Supported Resolution:

1280x1024@30fps
1280x600@50fps
1280x400@70fps
800x600@70fps
800x400@100fps
640x480@100fps
600x400@130fps
400x400@170fps
480x320@190fps
320x240@320fps

bin:
2x2bin 640x512@30fps
4x4bin 320x256@30fps

드라이버 다운로드

https://astronomy-imaging-camera.com/software/
