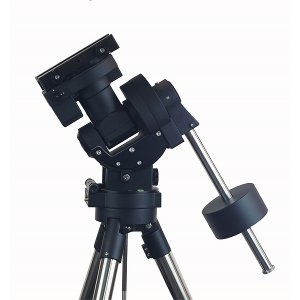

Following up on the success of the iOptron CEM60 center balance equatorial mount, we at iOptron are excited to introduce two new medium payload center balance mounts. The CEM70 /*C*and*C*/ CEM70G are new standard bearers for equatorial mounts in the 70lb payload segment. Both models are packed with advanced features however the CEM70G is the first of its type with an onboard optical guiding system increasing tracking accuracy while streamlining the components resulting in a more portable imaging setup.

Retaining the inherent properties of the center balance design, these relatively compact medium payload mounts deliver what astronomers expect in an efficient accurate portable mount. With precise GOTO pointing /*C*and*C*/ accurate tracking (PE <±3.5 arcsec) the CEM70 is a solid performer for observers /*C*and*C*/ imagers alike.

Innovative operational features such as the internal iPolar electronic polar scope, easy lock drive gear engagement (levers large enough to use with gloves), an advanced cable management system for the mount, iPolar, guider, /*C*and*C*/ camera, /*C*and*C*/ cumulatively assure users the CEM70 /*C*and*C*/ 70G designed with their needs in mind.

(Tripod/Pier /*C*not*C*/ included.)

Features

• A new design, center-balanced equatorial mount (CEM) for maximum payload with natural stability
• Ideal for both visual observation /*C*and*C*/ astrophotography
• Payload of 70 lbs (31.8 kg) with the mount weight of 30 lbs (13.6 kg)
• Easy to use /*C*and*C*/ reliable gear clutches
• Precision altitude /*C*and*C*/ azimuth adjustment.
• Precision stepper motor with 0.07 arcsec accuracy for precise GOTO /*C*and*C*/ accurate tracking
• iPolar^TM electronic polar scope
• Go2Nova? 8407+ V2 controller with Advanced GOTONOVA? GOTO Technology with built in heater
• High precision tracking with low periodic /*C*error*C*/ (PE)<±3.5 arcsec
• Permanent periodic /*C*error*C*/ correction (PPEC)
• 32-channel Global Positioning System (GPS)
• USB connection
• Integrated ST-4 autoguiding port
• Advanced cable management system with more choices
• Spring loaded 8' Vixen/Losmandy dual saddle

PACKAGE CONTENTS

Box 1 of 2: #C702A
1x CEM70 mount head in hard case with accessories

Box 2 of 2: #7226
1x 9.5kg counterweight

Mount	Center-balanced Equatorial Mount (CEM)
Payload	31.8kg (70 lbs), exclude counterweight*
Mount weight	13.6kg (30 lbs)
Payload/Mount weight ratio	2.33
Material	All metal
Latitude adjustment range	0°~ 65°
Azimuth adjustment range	± 4°
PE (by encoder)	< ±3.5 arcsec**
Worm period	348 sec
PEC	PPEC
Right Ascension worm wheel	Φ151mm, 248 teeth
Declination worm wheel	Φ151mm, 248 teeth
Worm	Φ21.2mm
Right Ascension axle	Φ55mm, steel
Declination axle	Φ55mm, steel
Right Ascension bearings	Φ80mm
Declination bearings	Φ80mm
Counterweight shaft	Φ28x 415 mm (SS, 1.9kg)
Counterweight	9.5 kg (20 lbs) x1
Mount base size	Φ152mm
Motor drive	Precision stepper motor w/128 micro-step
Resolution	0.07 arc seconds
Slew speed	3.75°/sec (900x) max.
Hand Controller	Go2Nova? 8407+, 8 line 21 /*C*character*C*/ LCD
Power requirement	DC 12V, 5A (5.5mm/2.5mm plug)
Power consumption	0.6A(Tracking),0.8A(GOTO)
Polar Scope	Internal electronic polar scope, iPolar
Meridian treatment	Stop (0-10° pass), auto flip
Zero position	Automatic zero search
Park position	Horizontal, vertical, current, alt/azi /*C*input*C*/
Level indicator	YES
Dovetail saddle	8' Losmandy D & Vixen
GPS	YES
Guiding port	ST-4
Communication port	USB2.0
Cable management	2xDC12V (3A), 3xUSB2.0, 1xDC in/1xDC out, iPort. 1X USB /*C*input*C*/ for mount /*C*and*C*/ USB hub
Operation temperature range	-20°C ~ +45°C
Hard case	YES
Pier/Tripod	Optional LiteRoc tripod /*C*or*C*/ pier
Warranty	Two year limited

* OTA size /*C*and*C*/ length dependent.
** Measured with encoder on the bench, 348 seconds
